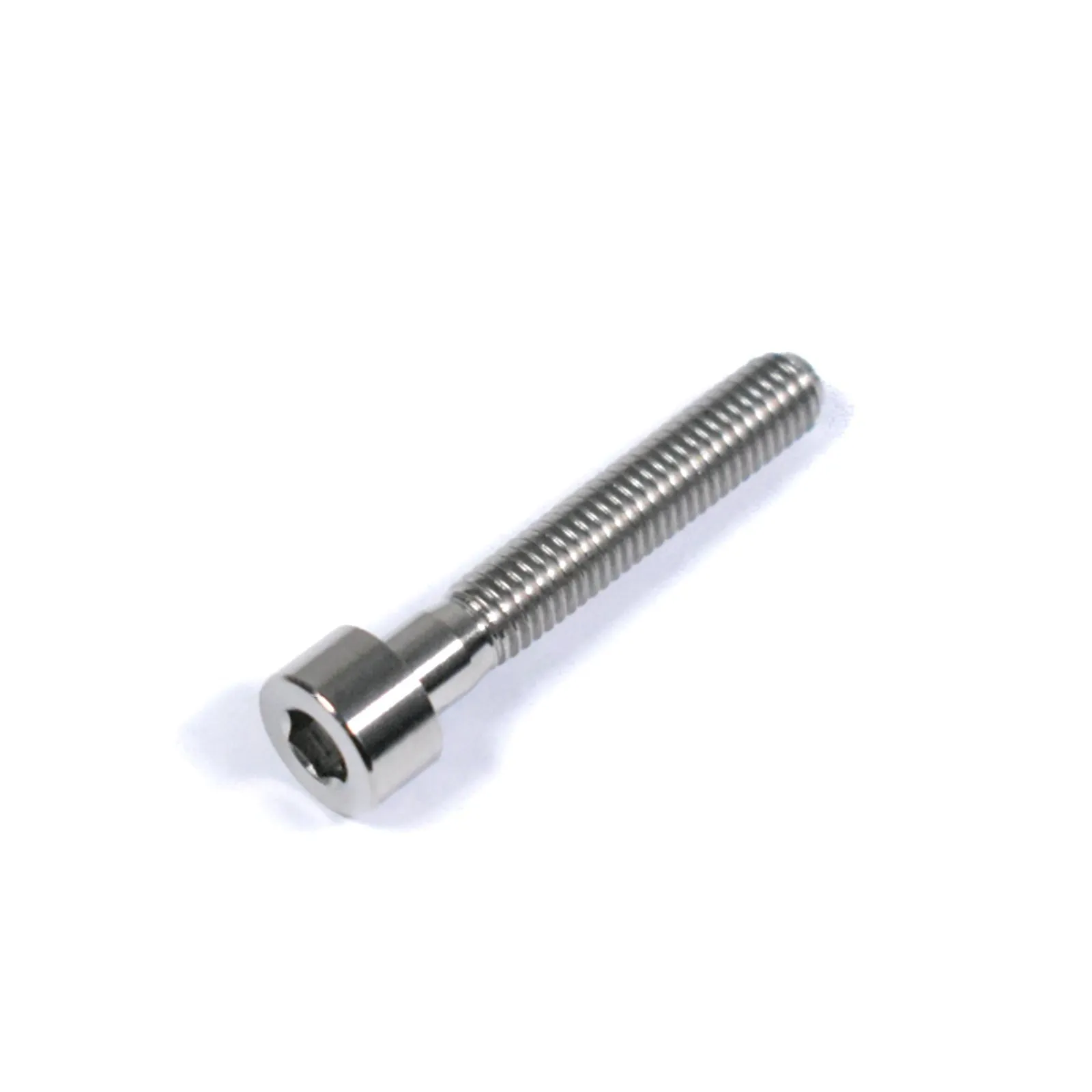

• M5x0.8x30
• Head diameter: 8mm
• Head height: 5mm
• Thread length: 25mm

Additional Information

• Precision manufactured from Grade 5 6AI-4AV titanium alloy

• Guaranteed not to rust or otherwise corrode

• Approximately 45% lighter than equivalent steel fasteners
• Rolled threads for enhanced fatigue resistance and superior protection from galling
• Accurately formed heads for close tool matching and easy installation/removal
• Attractive polished finish
• Maintenance free
• Non-magnetic
• Thread pitch: 0.8 mm (standard metric pitch)
• Applicable standard: DIN912, optimised for weight and strength

Installation

• Torque to the manufacturer's specification for the original fastener
• Apply anti-seize compound to bolts in general use
• Use thread-locking compound in safety-critical applications

International Customers

• Postage costs are automatically combined when you order more than one item from us
• All items are sent by fully tracked airmail

Specification

• Tensile strength: Heat treated to 950Mpa~1000Mpa
• Yield strength: 870Mpa~925Mpa
• Hardness: 30 HRC-40HRC
• Shear strength: 500Mpa~550Mpa
• Elongation: 14%~18%
• Working temperature: Up to 500°C
